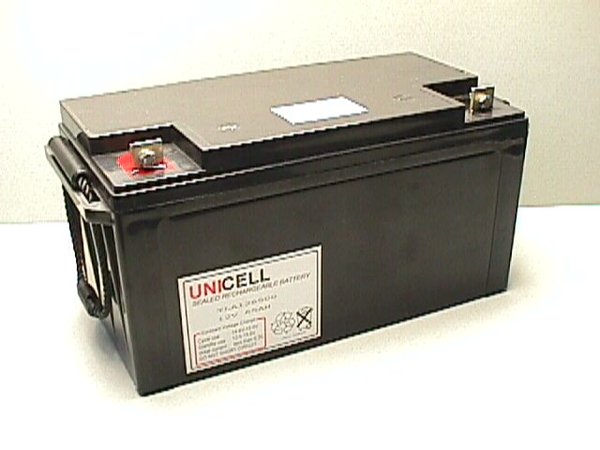

12V 55Ah Sealed Lead Acid (SLA) maintenance free battery

12V 55Ah sealed lead acid SLA battery supply by UNICELL in Singapore

UNICELL a Leading Supplier for sealed lead acid battery In Singapore Malaysia and Indonesia since1986

Order code : DLA12550F (55Ah replace the 50Ah old series )

Categories:      12V 55Ah Sealed Lead Acid (SLA) maintenance free battery,

Description:     12V rechargeable battery

Size:                Length 226 x Width 135 x Height 207 mm (233 mm with terminal) + 2mm

Weight:            17 Kg apx.

Terminal:         F15 ( M8 screw )

Application:     UPS, Exit light , back-up system

Specifications

Cells Per Unit: 6

Voltage Per Unit: 12 V

Capacity: 60.0Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)

Weight (kg): Approx. 17 kg

Maximum Discharge current (A): 660 A (5sec.)

Internal Resistance Approx.: Approx. 8mΩ

Operating Temperature Range:

- Discharge：-15℃~50℃(5°F~122°F)

- Charge：-15℃~40℃(5°F~104°F)

- Storage：-15℃~40℃(5°F~104°F)

Nominal Operating Temperature Range: 25°C ± 3°C (77°F ± 5°F)

Float charging voltage: 13.5 to 13.8 VDC/unit Average at 25°C (77°F)

Recommended Maximum Charging current limit: 16.5 A

Equalization and Cycle Service: 14.4 to 15.0 VDC/unit Average at 25°C (77°F)

Self Discharge: Unicell batteries can be stored for more than 6 months at 25°C (77°F)

Please charge batteries before using. For higher temperatures the time interval will be shorter.

• Container Material: ABS(UL94-HB/File E50263)*Flammability resistance of(UL94-V0/File E88637) can be available upon request.

Fits UPS Models or battery cross refer part no.

AJC D55C battery

Dewalt/Black & Decker CMM625 battery

Dual Lite 12-698 battery

Dual Lite 12-781 battery

Dual Lite 12-782 battery

Dual Lite 12-907 battery

ELS EDS12500 battery

Emergi-Lite 12LC200V battery

Enersys NP55R12HD battery

Fiamm 12FLB200 battery

Fire Lite BAT-12550 battery

Fire Lite PS-12550 battery

Fire Lite PS-12600 battery

Fortress Scientific AGM1248T battery

Fortress Scientific AGM1265T battery

Fortress Scientific KIDS COMMUTER battery

Haze HZB12-55 battery

Innovative BT55-12(12V55AH) battery

Interstate Batteries ASLA1160 battery

Jasco RB12550 battery

Lintronics DM5512 battery

MK Battery 22NFSLDG battery

MK M22NF SLD G battery

Ortho Kinetics 460 SIERRA XL battery

Ortho Kinetics AGM1265T battery

Ortho Kinetics OUTSIDER 4500 battery

Permobil Usa AGM1265T battery

Power Battery WCG22 battery

Power Rite PRB1255 battery

Powercell PC12500 battery

Powercell PC12620 battery

Powersonic PS-12380 B battery

Powersonic PS12550NB battery

Werker WKA12-55 battery

Werker WKA12-55C/FR battery

Werker WKA12-55P/FR battery

Rhino Batteries SLA55-12 battery

SBC S12500 battery

SBC S12550 battery

SBS S12500 battery

SBS S12550 battery

Sonnenschein 0889566000

Sonnenschein A212/55A battery

Sonnenschein A512/55.0A battery

Sonnenschein M84001A5120550A battery

Sonnenschein NGA5120055HSOCA battery

Tempest 22NF battery

Tempest TR50-12A battery

Tempest TR55-12 battery

Tianneng 6-EVF-52 battery

Tian Heng 6-EVF-65 battery (12V 65Ah)

Toyo 6GFM55 battery

Universal Battery UB12550 battery
